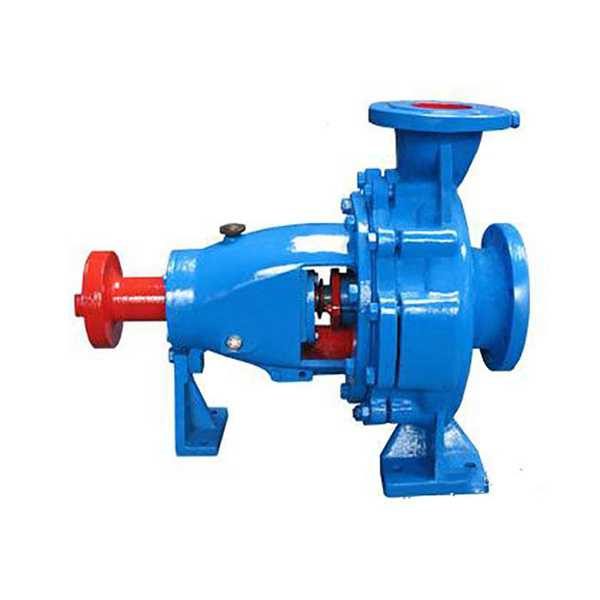

Horizontal Pump – Model IS
Pump Information
DESIGN STANDARD
ISO2858, GB/T5656
FLOW RATE
~400m3/h
HEAD
~80m
APPLIED TEMPERATURE
200℃
DESIGN PRESSURE
1.6Mpa
General Description
Model IS/ISR is single-stage end suction water centrifugal pump. It is used to transfer hot water less than 200℃ and corrosive liquid with similar viscosity to water. It is mainly used in industries like metallurgy, chemical, printing & dyeing, ceramics, heating and air-conditioning etc.
Model IS/ISR has 2900rpm and 1450rpm motors. Its flow rate is 6.3~400m3/h and head is 5~80m. All pumps use mechanical seal and soft PTFE packing seal.
Applications
Model IS/ISR pump is mainly used in industries like metallurgy, chemical, printing & dyeing, ceramics, heating and air-conditioning etc.
